Cordless Jigsaw + Circular Saw Combo Kit with Battery & Charger, 20V
Cordless Jigsaw + Circular Saw Combo Kit with Battery & Charger, 20V

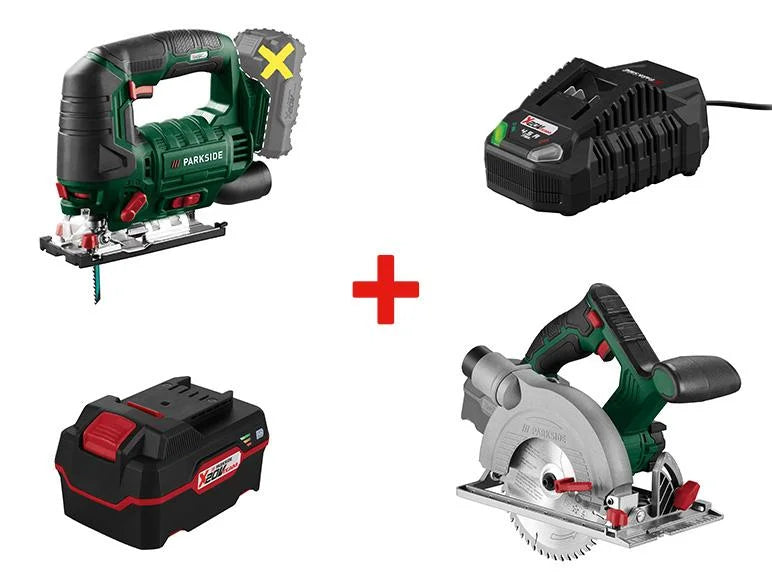

PARKSIDE® Cordless Jigsaw + Circular Saw Combo Kit with Battery & Charger, 20V

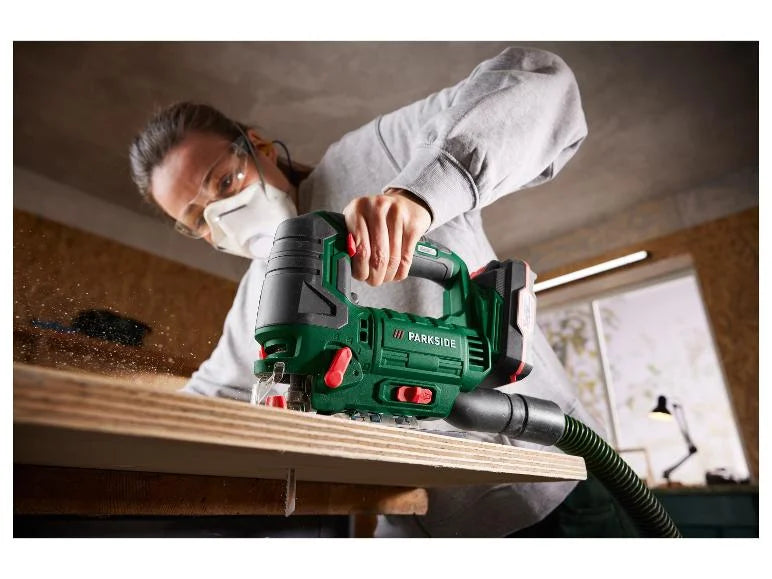

PSTDA 20-Li C3 Cordless Jigsaw, 20V
Key Features
-
3-stage orbital action: Adjustable cutting aggression (Levels 1-3 + fine-cut mode)
-
Precision control:
-
0-2,700 rpm variable speed
-
6 bevel angles (-45° to 45°)
-
-
Swiss-made blades: 2x wood (T 144 D), 1x metal (T 118 AF)
-
Dust management: Extraction port with reducer nozzle
-
Safety: Transparent chip guard + anti-splinter insert
-
Ergonomics:
-
Non-slip Softgrip handle
-
On-tool Allen key storage
-
Technical Specifications
| Parameter | Specification |
|---|---|
| Stroke Length | 20mm (0.79") |
| Cutting Depth | Wood: 80mm (3.15") Metal: 5mm (0.2") Aluminum: 12mm (0.47") |
| Materials | Housing: Plastic Case: 90% recycled HDPE |
| Dimensions (Tool) | 230×202×75 mm (9.1×8×3") |
| Weight (Tool Only) | 1.2 kg (2.65 lb) |
Included Accessories
-
Parallel guide, plastic base plate, dust extraction adapter

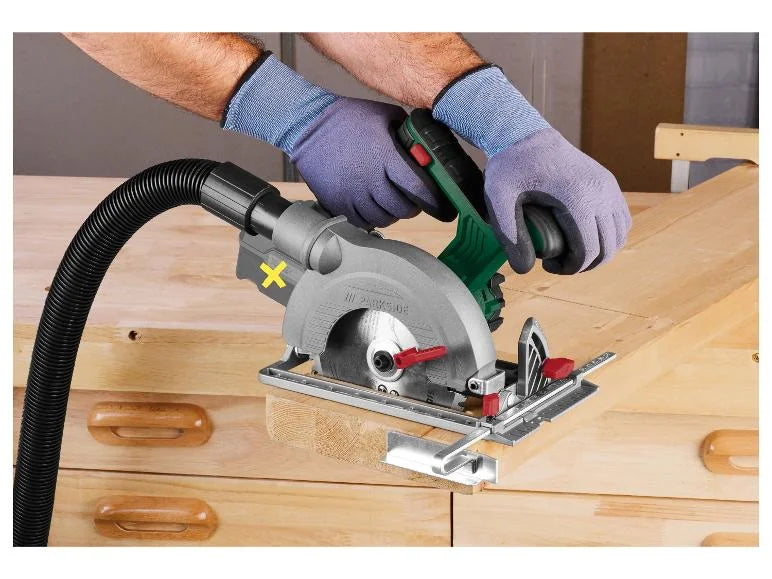

PHKSA 20-Li C4 Cordless Circular Saw, 20V
Key Features
-
160mm (6.3") carbide blade: 48-tooth design for wood/PVC
-
Precision adjustments:
-
Continuous depth (max 53mm at 90°)
-
0-45° bevel cutting
-
-
Dust extraction: Built-in port with reducer
-
Safety:
-
Dual-sided switch lock
-
Quick-stop braking
-
-
Universal compatibility: Fits Bosch/Metabo blades (Ø160×20mm)
Technical Specifications
| Parameter | Specification |
|---|---|
| No-Load Speed | 3,800 rpm |
| Cutting Depth (45°) | 38.5mm (1.52") |
| Blade Specifications | Body: C50 tool steel Teeth: YG8 carbide |
| Materials | Base plate: Aluminum Guard: Impact-resistant plastic |
| Dimensions (Tool) | 295×177×212 mm (11.6×7×8.3") |
| Weight (Tool Only) | 1.9 kg (4.2 lb) |
Included Accessories
-
Pre-installed wood/PVC blade, parallel guide, Allen key

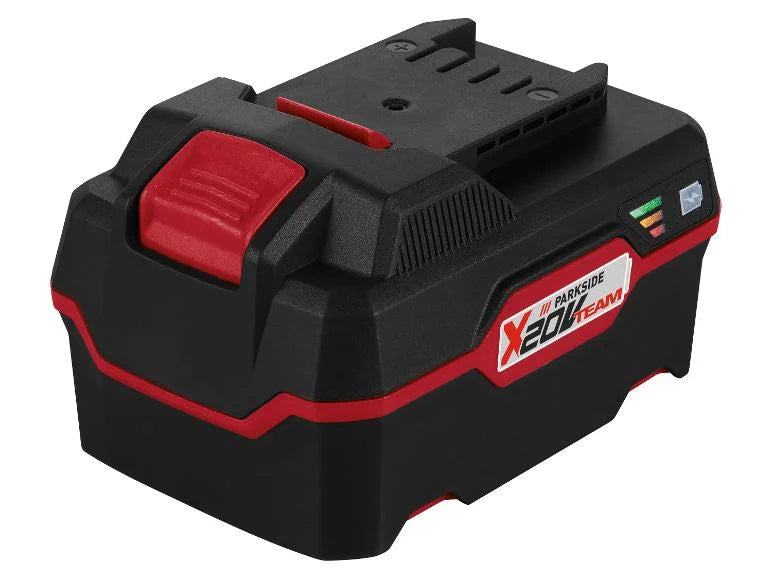

PAP 20 B3 Lithium-Ion Battery, 20V, 4Ah
Core Technology
-
Cell Balancing: Extends lifespan by 30%
-
3-level LED indicator: Real-time charge status
-
Universal compatibility: All PARKSIDE X 20V tools
| Parameter | Specification |
|---|---|
| Voltage | 20V (max) |
| Capacity | 4Ah |
| Dimensions | 127×71×84 mm (5×2.8×3.3") |
| Weight | 712g (1.57 lb) |

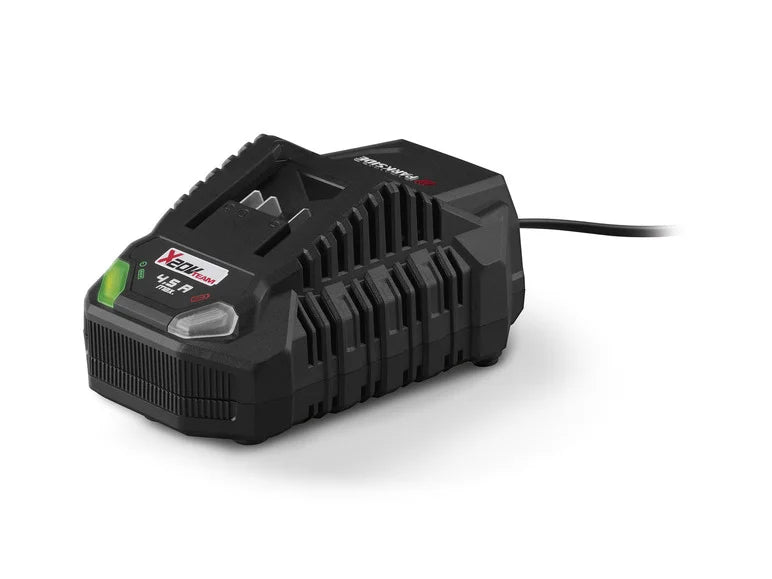

PLG 20 C3 Rapid Charger, 4.5A, 20V
Key Functions
-
Fast charging: 60 min for 4Ah battery
-
Auto-shutoff + LED status indicator
-
Wall-mountable: Includes bracket
| Parameter | Specification |
|---|---|
| Charging Current | 4.5A |
| Charging Time (4Ah) | 60 min |
| Cable Length | 2m (6.6 ft) |
| Dimensions | 150×90×74 mm (5.9×3.5×2.9") |
| Weight | 430g (0.95 lb) |
