Cordless Metal Cutting Circular Saw + Jigsaw + Battery + Charger, 20V
Cordless Metal Cutting Circular Saw + Jigsaw + Battery + Charger, 20V

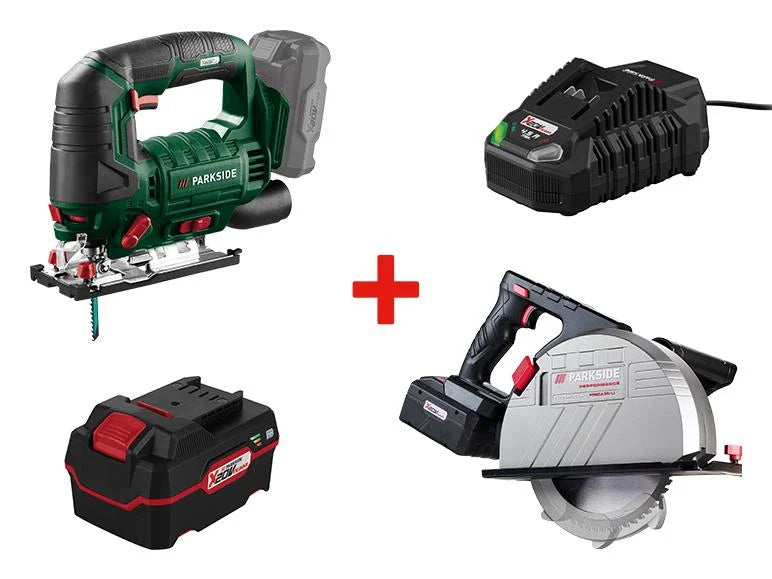

PARKSIDE PERFORMANCE® Cordless Metal Cutting Circular Saw + Jigsaw + Battery + Charger, 20V

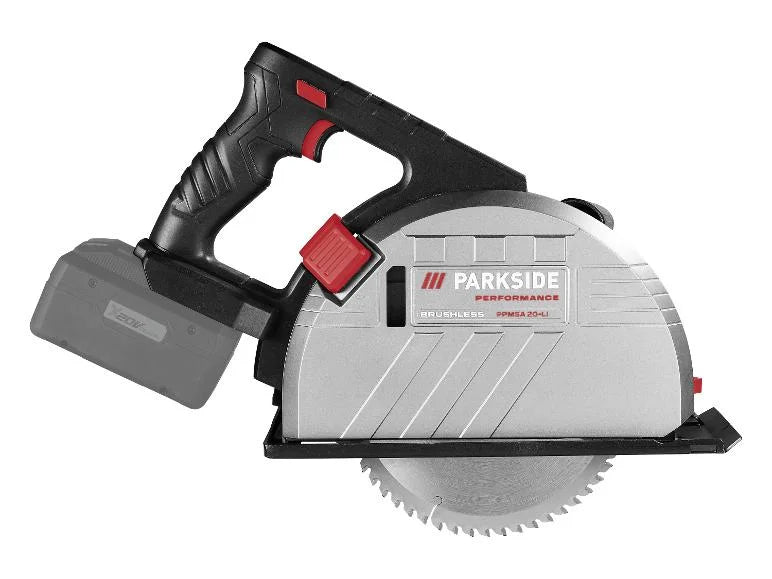

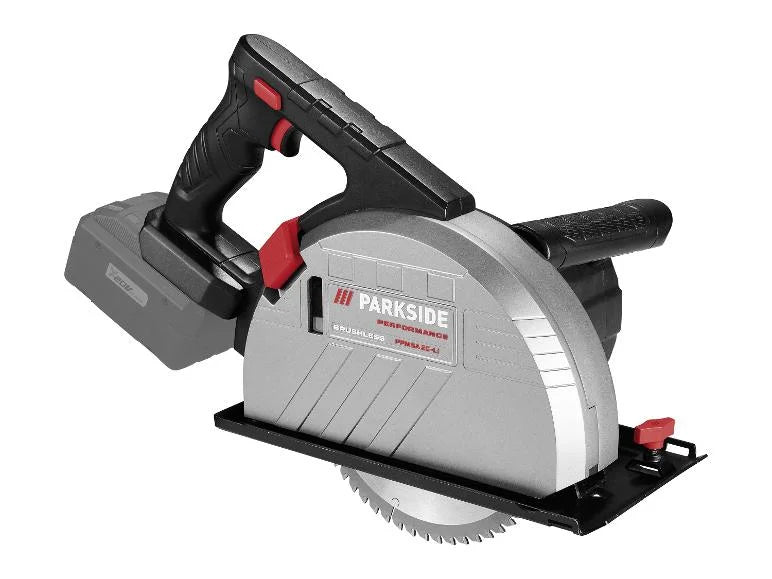

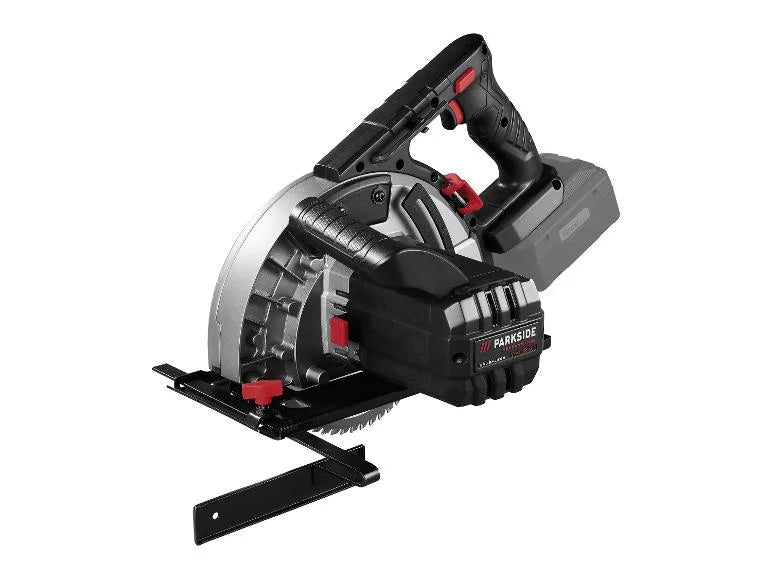

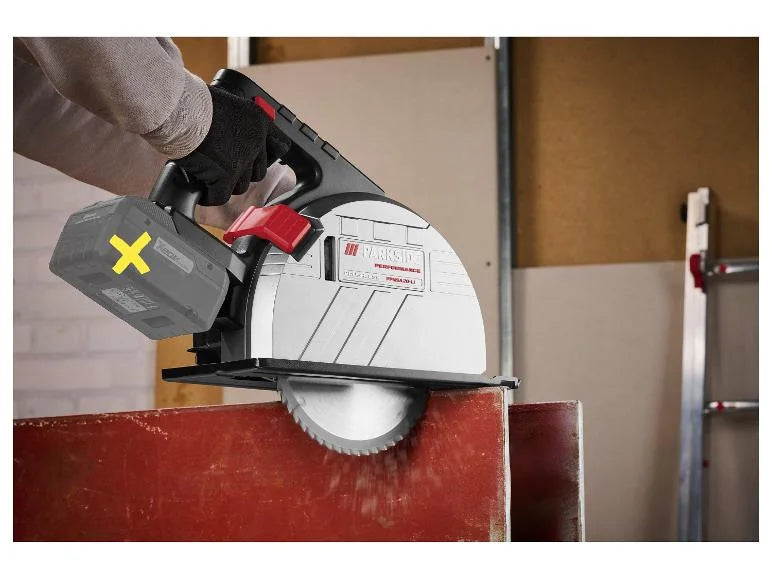

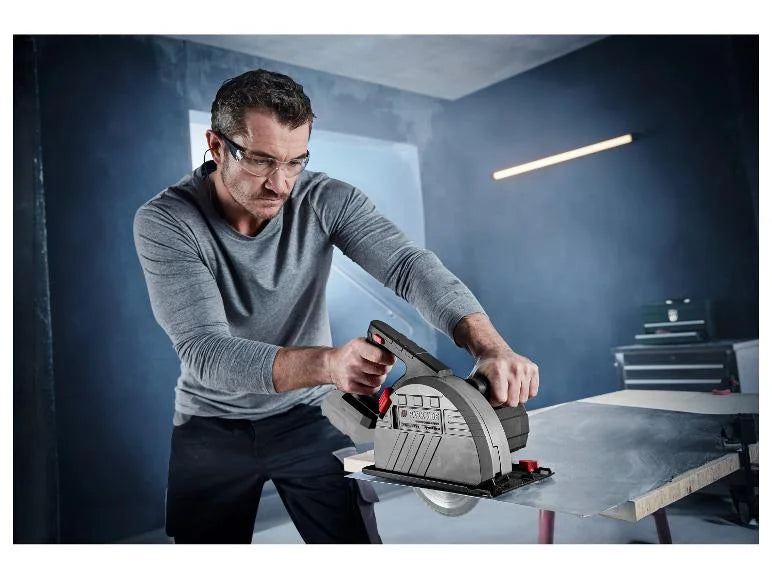

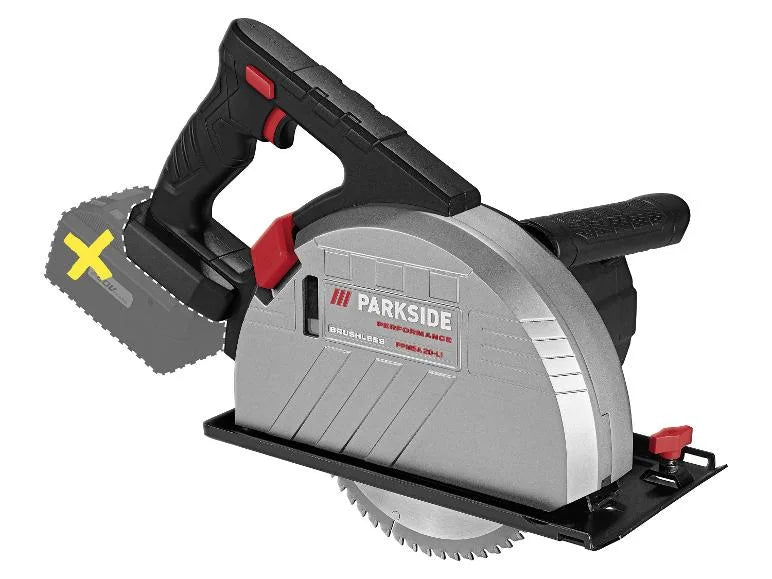

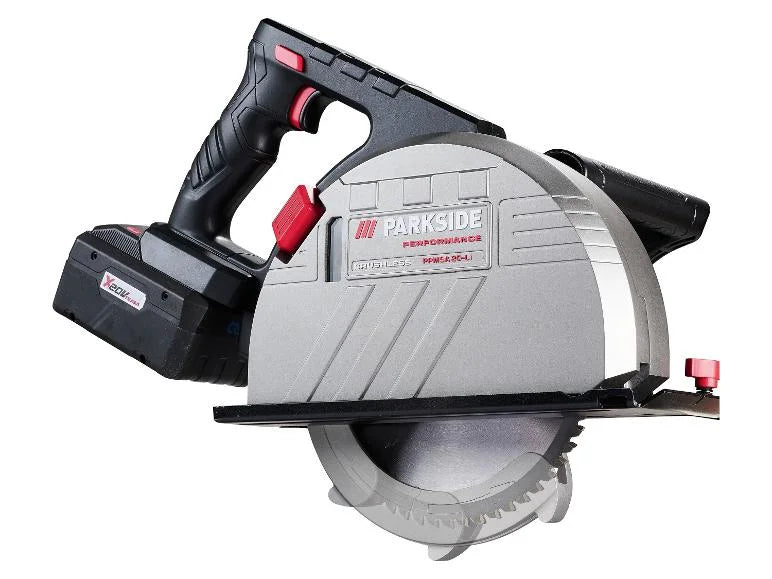

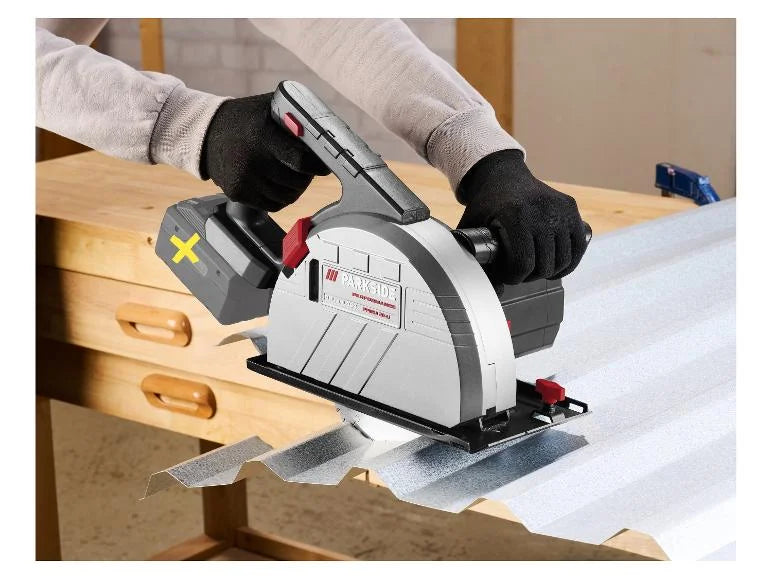

PPMSA 20-Li A1 Cordless Metal Cutting Circular Saw, 20V
Characteristics
-
Dry-cut technology for fast, clean, burr-free metal cutting
-
Precise cuts in aluminum, steel, and other metals
-
Brushless motor – extended lifespan with reduced wear
-
6-speed settings with digital display
-

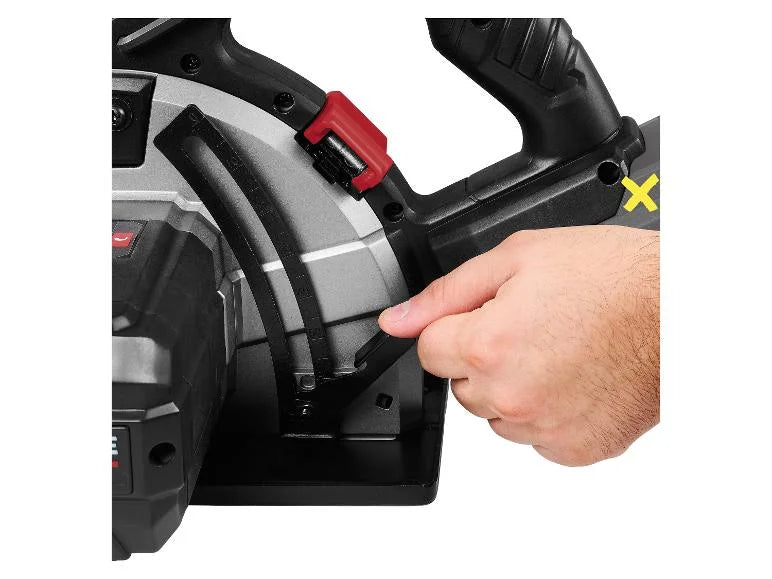

Continuously adjustable cutting depth
-

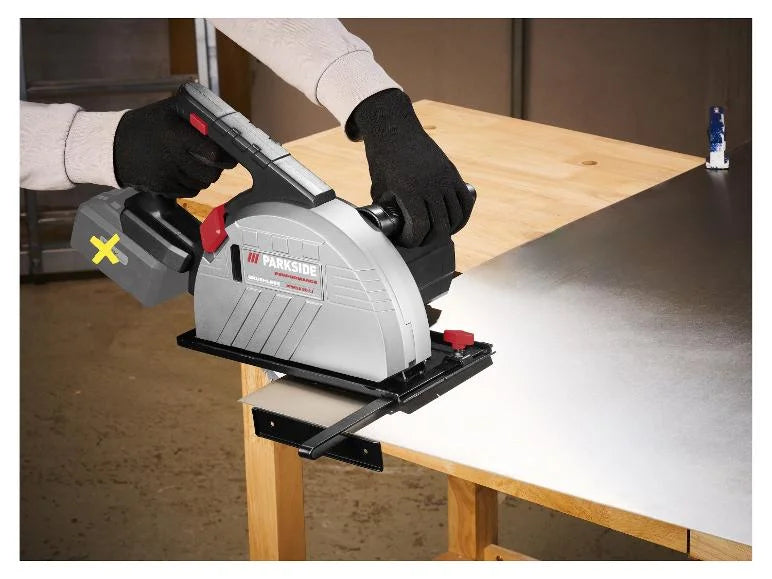

Parallel guide fence for precision cuts
-

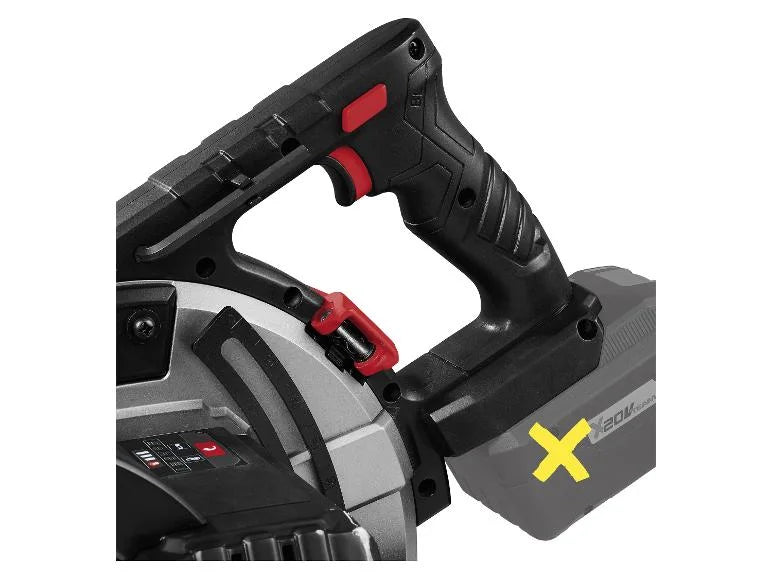

Dual-sided safety switch with Quickstop function
-
Electronic soft start
-
LED work light illuminates cutting line
-
Pendulum guard with retraction lever
-

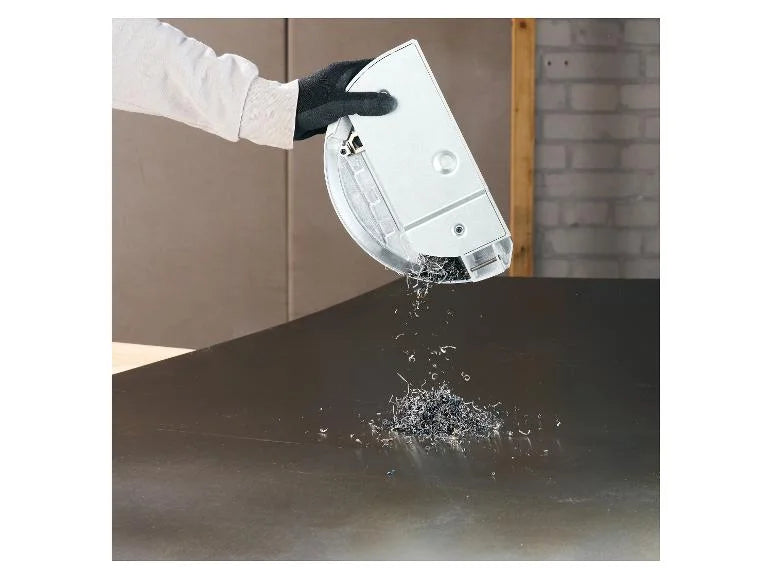

Large chip collection tray
-

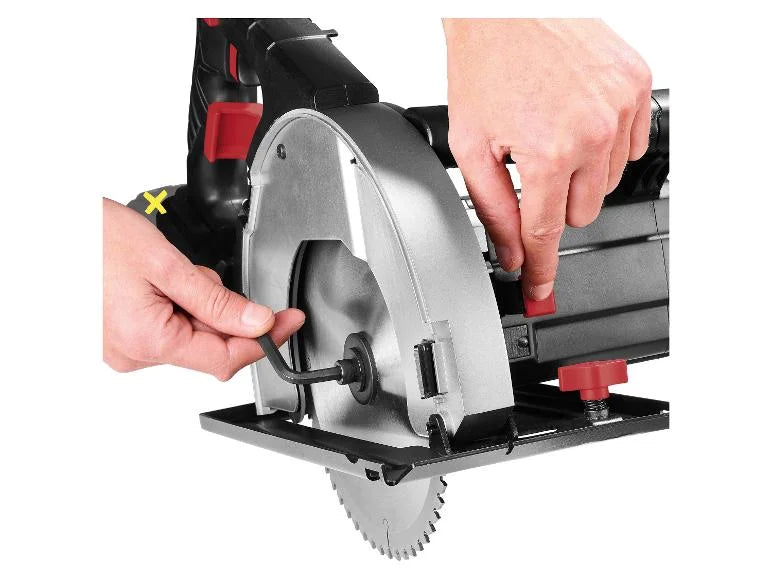

Tool-free blade change with spindle lock
-
On-tool battery charge indicator
-

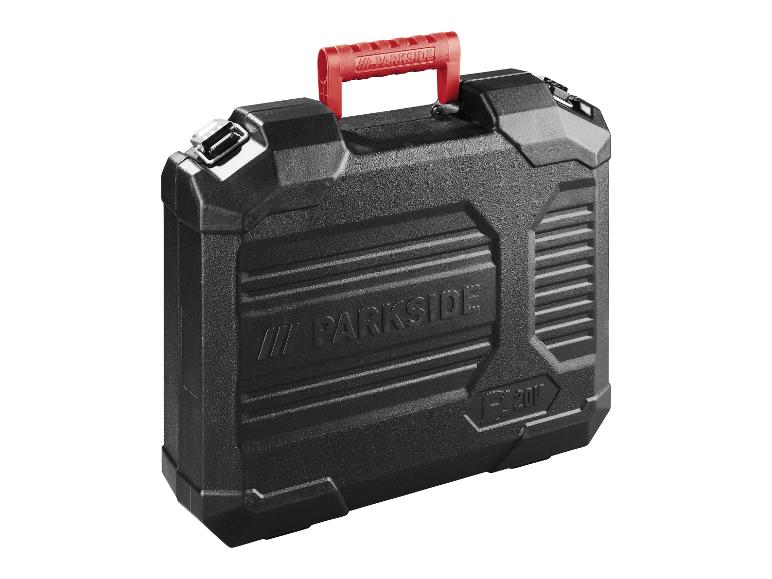

Includes storage case
-
Compatible with standard 190mm metal blades (30mm bore, max. 1.4mm thickness)
-

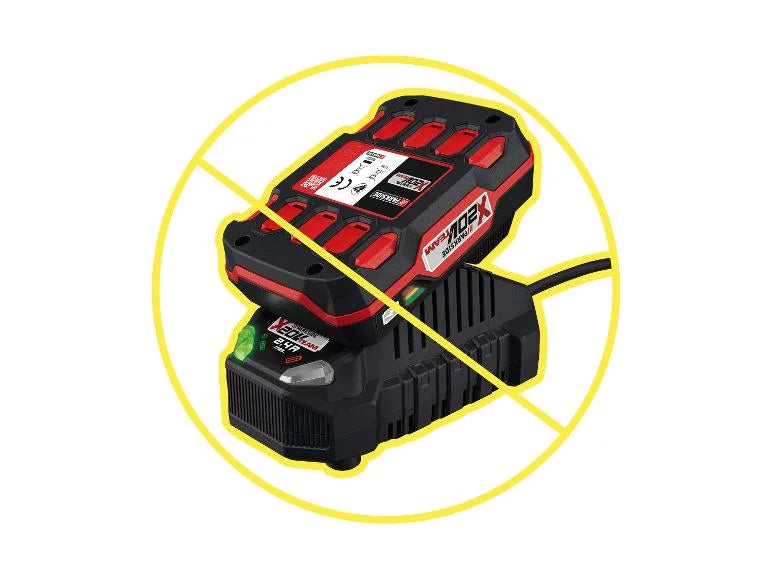

Battery/charger not included
Product Specifications
| Parameter | Specification |
|---|---|
| Power Source | Battery |
| No-Load Speed | 2,000–4,000 rpm (6 levels) |
| Battery Voltage | 20 V |
| Max. Cutting Depth | 62 mm (steel) |
| Blade Diameter | 190 mm |
| Materials | Plastic, steel |
| Dimensions (Tool) | 385 × 235 × 325 mm |
| Weight | 4.2 kg |
| Included Accessories | |

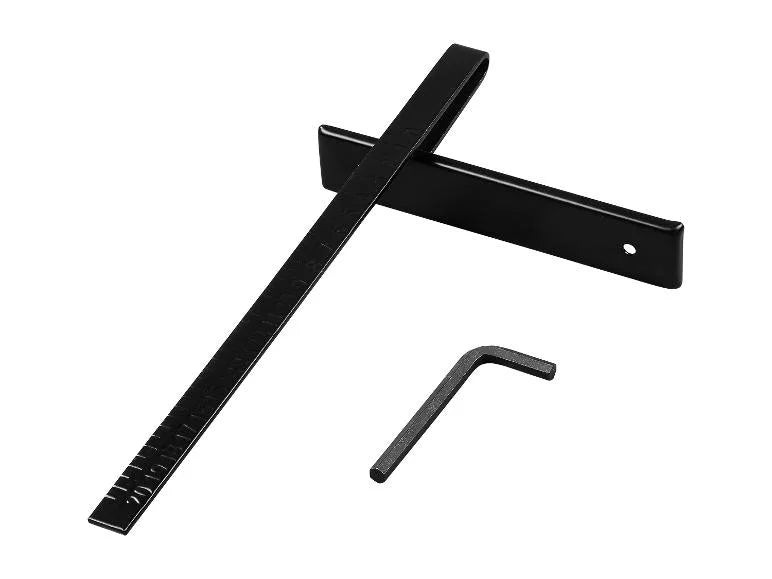

| 1× Allen key, 1× Pre-installed blade (PARKSIDE design), 1× Parallel guide |

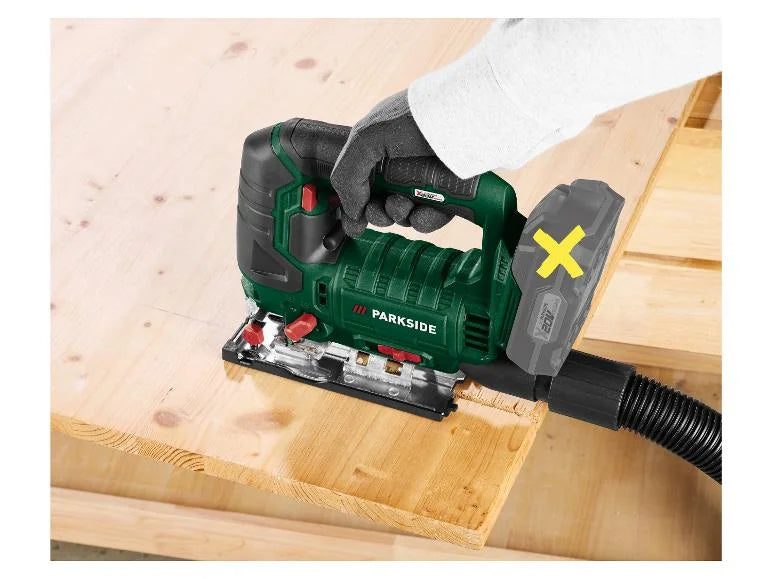

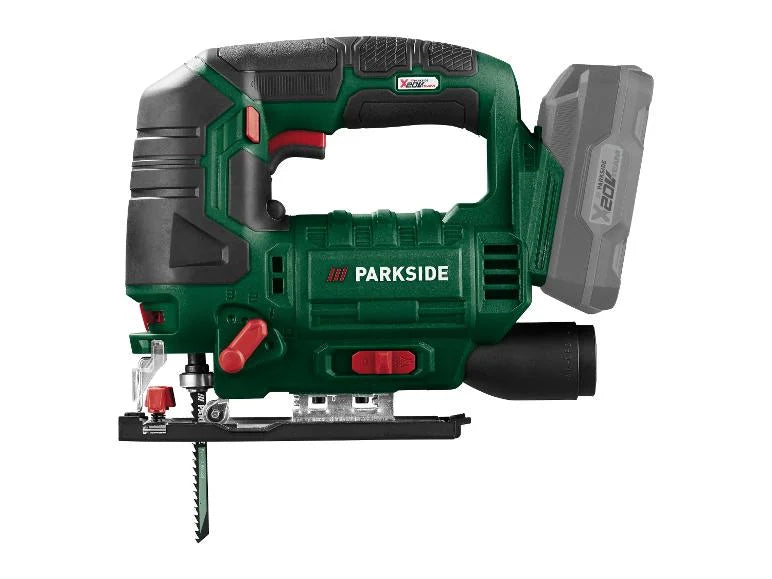

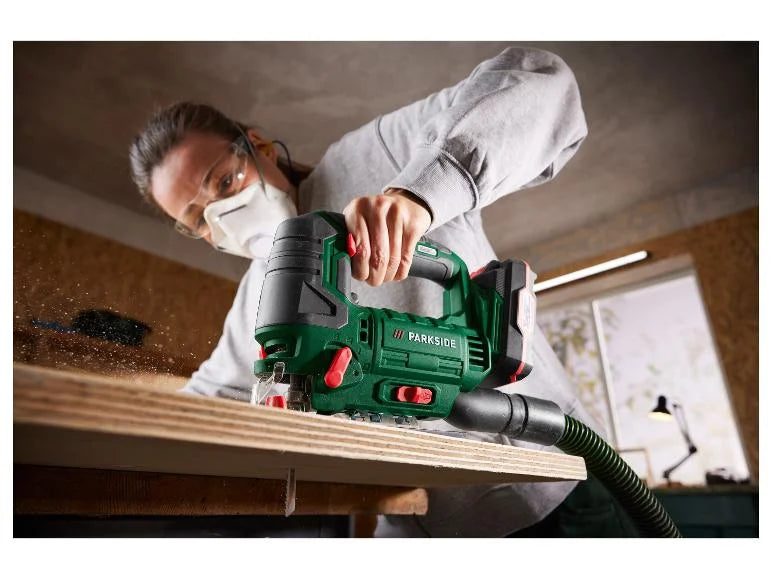

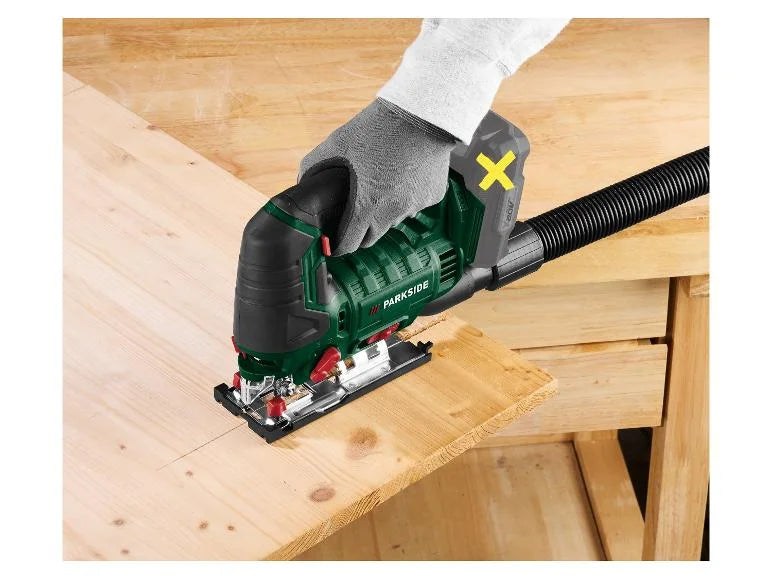

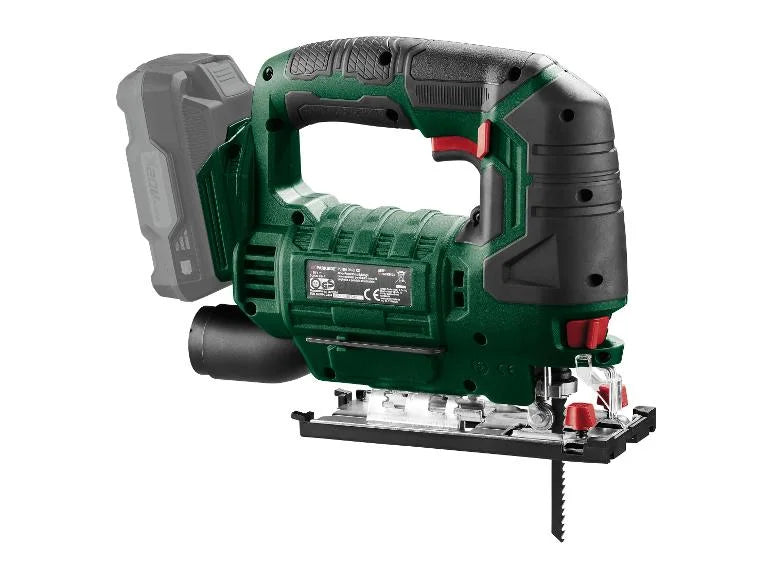

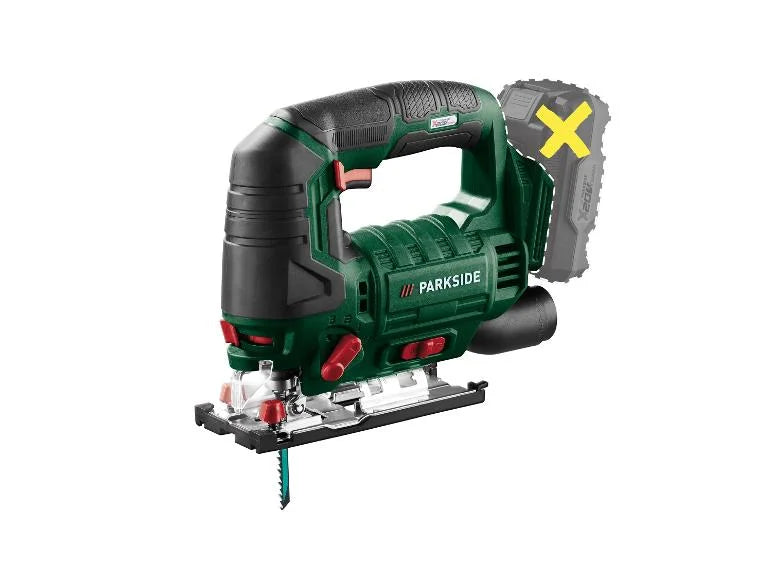

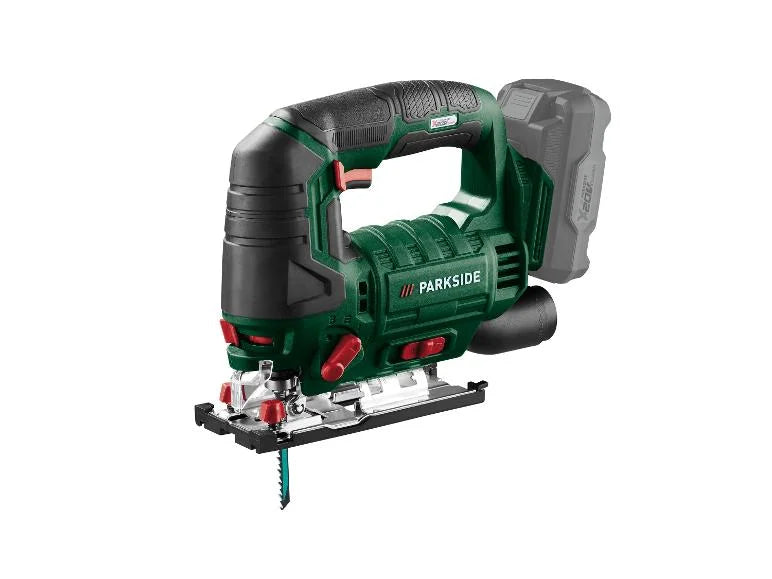

PSTDA 20-Li C3 Cordless Jigsaw, 20V
Characteristics
-

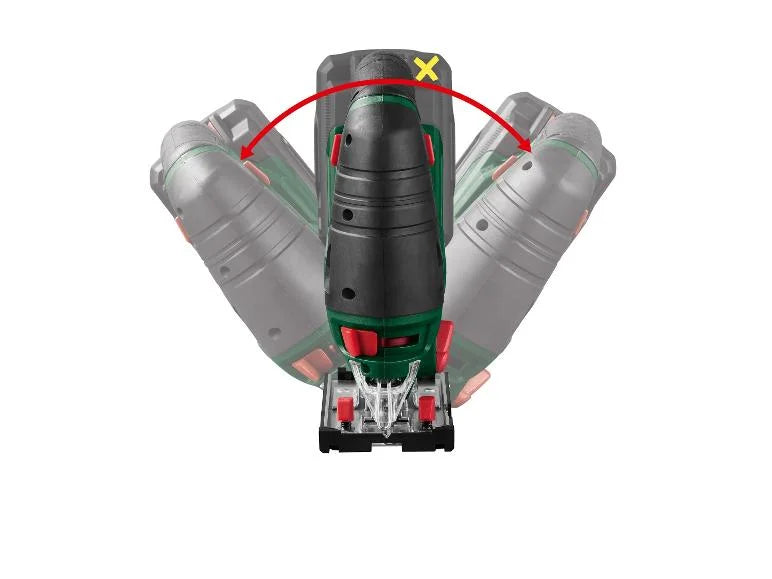

3-stage orbital action for faster cutting
-
Cuts wood, metal, plastic (with appropriate blades)
-
6 selectable cutting angles (-45° to 45°)
-
Fine-cut mode (no orbital action)
-
Continuously variable stroke rate (0–2,700 rpm)
-
Dual-sided switch lock
-
LED work light
-
Tool-free blade change system
-
Dust extraction port with reducer nozzle
-
Non-slip Softgrip handle
-
On-tool Allen key storage
-
Plastic base plate protects work surfaces
-
Transparent chip guard
-
Includes 3 Swiss-made blades
Product Specifications
| Parameter | Specification |
|---|---|
| Stroke Rate | 0–2,700 rpm |
| Stroke Length | 20 mm |
| Cutting Depth | 80 mm (wood), 5 mm (metal), 12 mm (aluminum) |
| Bevel Angles | 0°, ±15°, ±22.5°, ±45° |
| Orbital Settings | 3 levels + fine-cut mode |
| Materials (Tool) | Plastic |
| Dimensions (Tool) | 230 × 202 × 75 mm |
| Weight (Tool) | 1.2 kg |

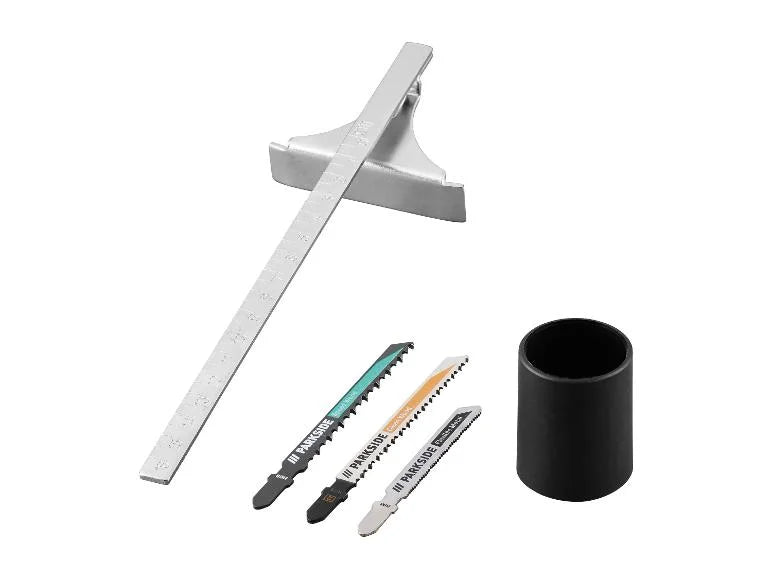

| Included Accessories | |

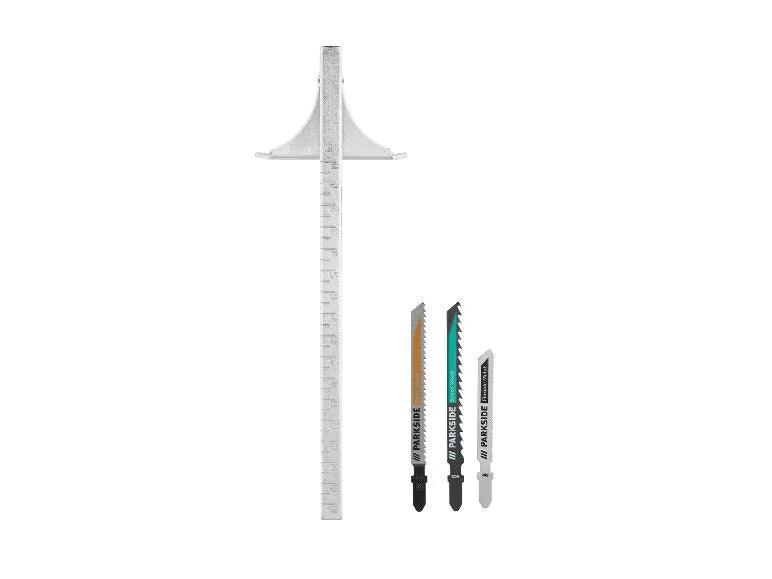

| 2× Wood blades (T 144 D), 1× Metal blade (T 118 AF), 1× Parallel guide, 1× Allen key, 1× Plastic base plate, 1× Chip guard, 1× Dust extraction adapter, 1× Reducer nozzle |

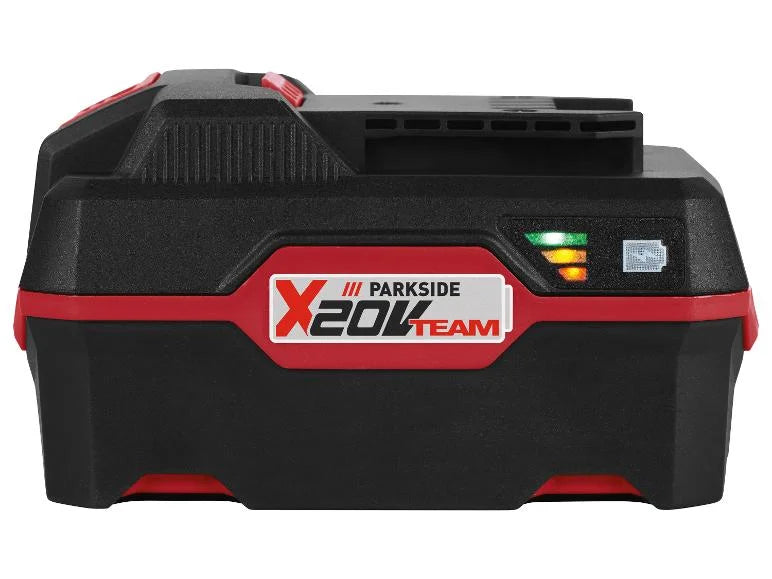

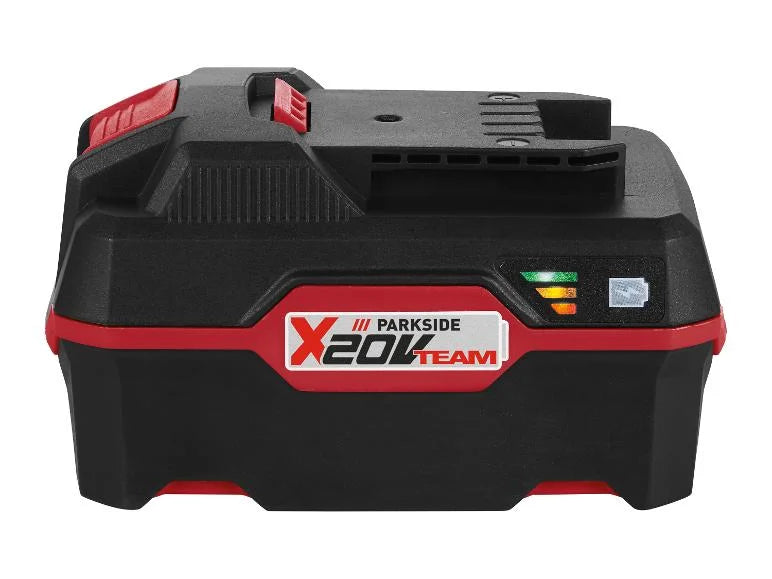

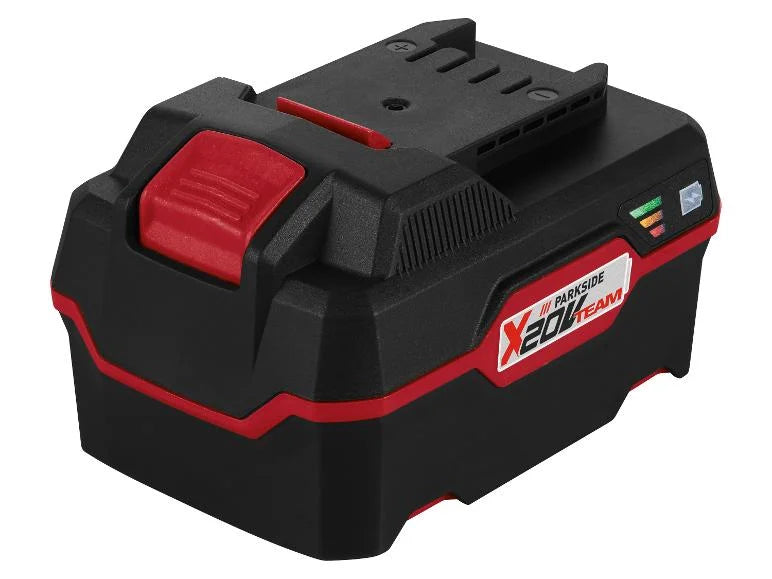

PAP 20 B3 Battery, 4Ah, 20V
Characteristics
-
3-level LED charge indicator
-
Cell Balancing technology extends lifespan
-
Compatible with all PARKSIDE X 20V Team tools
-
Charger not included
Specifications
| Parameter | Value |
|---|---|
| Type | Lithium-ion |
| Voltage | 20V (max) |
| Capacity | 4Ah |
| Dimensions | 127 × 71 × 84 mm |
| Weight | 712 g |

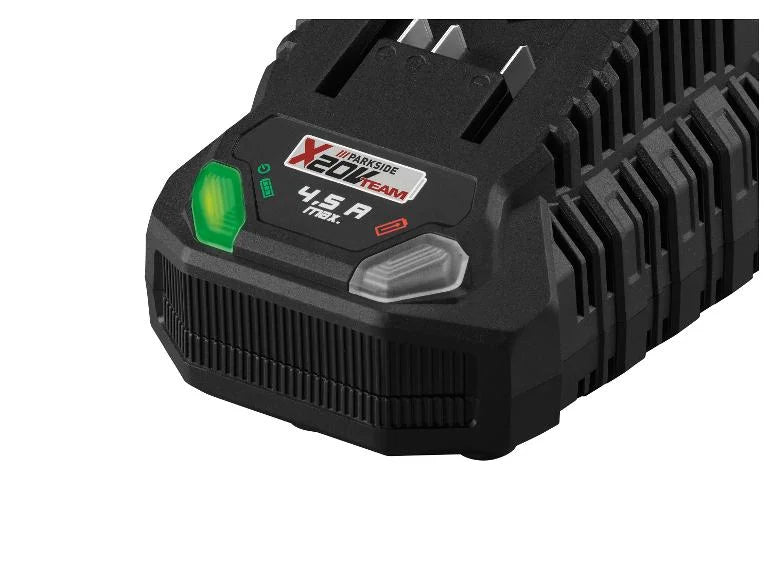

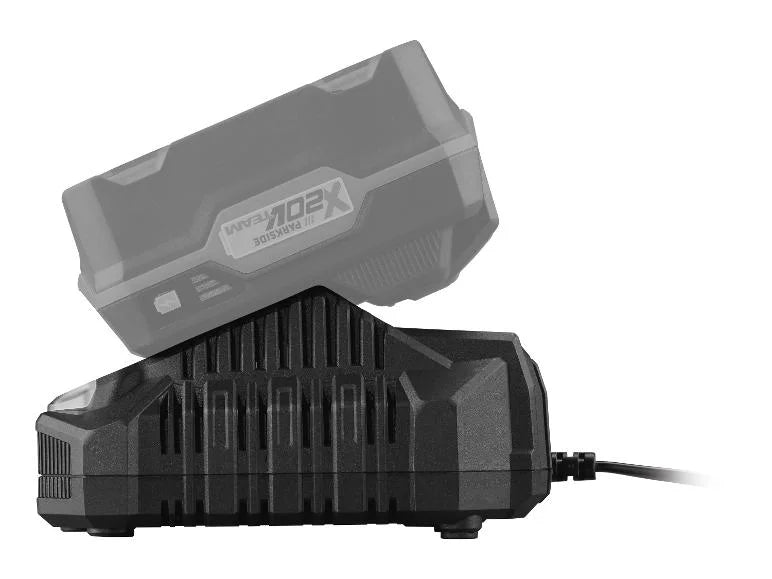

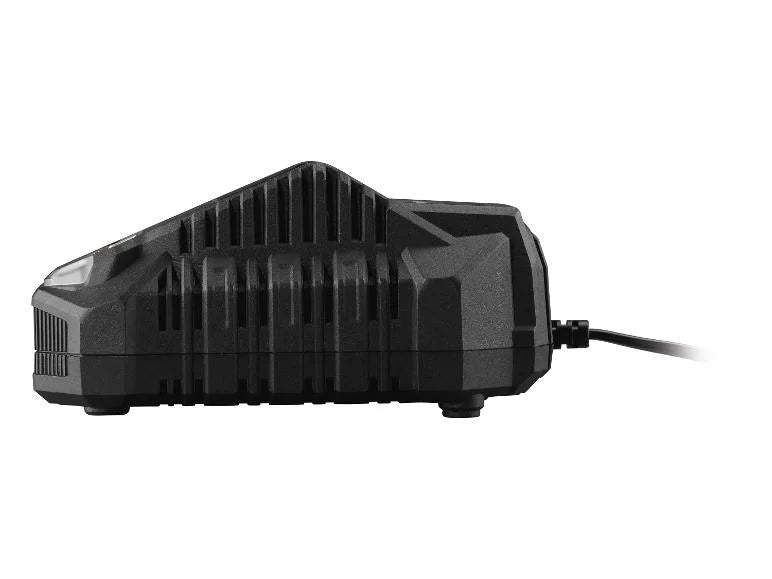

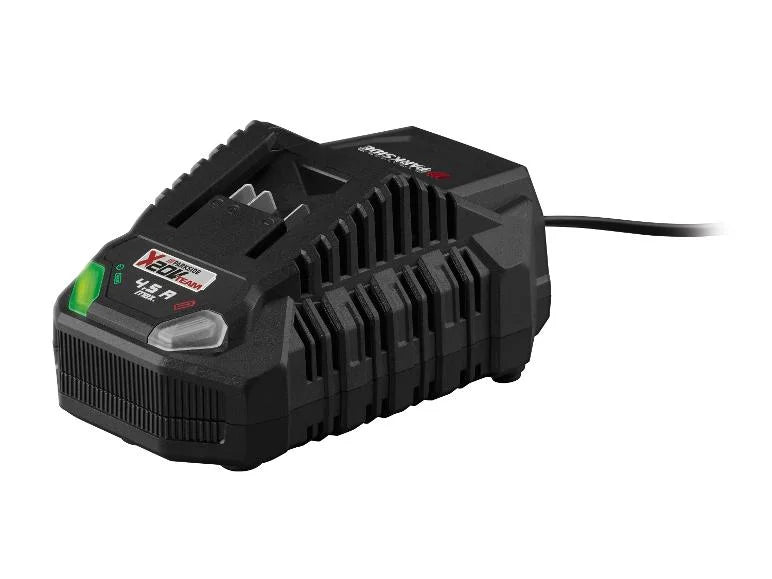

PLG 20 C3 4.5A Battery Charger
Characteristics
-
Rapid charging: 60 min for 4Ah battery
-
Auto shutoff + LED indicator
-
Rubberized anti-slip base
-

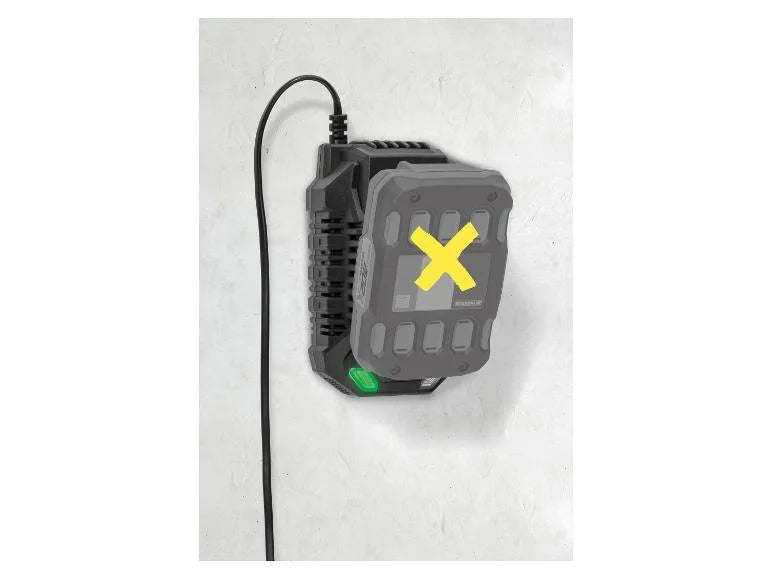

Wall-mount bracket included (hardware not included)
-
Battery not included
Specifications
| Parameter | Value |
|---|---|
| Input Power | 120W |
| Charging Current | 4.5A |
| Charging Times | 2Ah: 30 min (ready for basic use) 4Ah: 60 min 8Ah: 120 min 12Ah: 210 min |
| Cable Length |
